Product Info

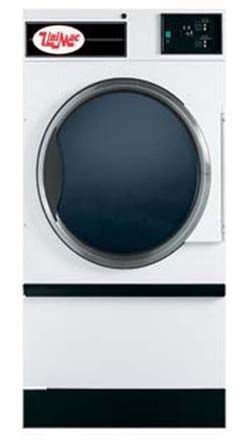

UT075 Dryer
|
MODEL |
UT075 | ||||
|
Dimensions | |||||
|
Capacity - kg (lb) |
34 (75) | ||||
|
Width - mm (in) |
981 (38 5/8") | ||||
|
Depth - mm (in) |
1346 (53") | ||||
|
Height - mm (in) |
1946 (76 5/8") | ||||
|
Cylinder Size - mm (in) (diameter x depth) |
937 x 914 (37" x 36") | ||||
|
Cylinder Volume - liters (cu. ft.) |
634.4 (22.40) | ||||
|
Motor | |||||
|
Motor Fan - HP(W) |
N/A | ||||
|
Motor Cylinder - HP(W) |
559 (3/4) | ||||
|
Energy Data | |||||
|
Gas Models |
48.3 kW (165,000 Btu/hr) | ||||
|
Steam Models |
At 6.9 bar (100 psi): 6.1 BHP, 61.6 kW (210,346 Btu/hr) | ||||
|
At 1.0 bar (15 psi): 4.1, 41.2 kW (140,810 Btu/hr) | |||||
|
Electric Models |
30 kW | ||||
|
Electrical Specifications | |||||
|
Gas and Steam |
Amps |
|
Electric |
Amps |
|
|
Voltages |
Non-Rev |
Rev |
Voltages |
Non-Rev |
Rev |
|
120/60/1 |
13.8 |
|
200-208/60/3 |
89 |
88 |
|
200-208/240/60/1 |
7.6 |
|
240/60/3 |
79 |
78 |
|
200-208/240/60/3 |
3.8 |
4.3 |
480/60/3 |
38 |
38 |
|
460-480/60/3 |
1.9 |
2.1 |
200/50/3 |
84 |
85 |
|
230-240/50/1 |
6.7 |
7 |
230/50/3 |
73 |
75 |
|
200/50/3 |
3.5 |
4.5 |
240/50/3 |
79 |
78 |
|
230-240/50/3 |
3.5 |
4.9 |
380/50/3 |
47 |
48 |
|
380/400-415/50/3 |
1.8 |
2.1 |
400-415/50/3 |
43 |
44 |
|
|
440/60/3 |
41 |
41 | ||
|
Connections | |||||
|
Water Inlet Size (C.A.R.E. System) |
(1) 3/4" Hose Connection | ||||
|
Air Outlet - mm (in) |
203 (8") | ||||
|
Plumbing - Gas Model - mm (in) |
13 (1/2" NPT) | ||||
|
Plumbing - Steam Model - mm (in) |
19 (3/4" NPT) | ||||
|
Airflow | |||||
|
Airflow - liters/sec (cfm) |
60Hz Gas and Steam Models: 434 (920) | ||||
|
Electric and 50Hz Gas and Steam: 354 (750) | |||||
|
Shipping | |||||
|
Net Weight - kg (lb) |
279 (615) | ||||
|
Shipping Weight - kg (lb) |
307 (677) | ||||
|
Shipping Height - mm (in) |
2149 (84 5/8") | ||||
|
Shipping Width - mm (in) |
1054 (41 1/2") | ||||
|
Shipping Depth - mm (in) |
1433 (56 3/8") | ||||
