Product Info

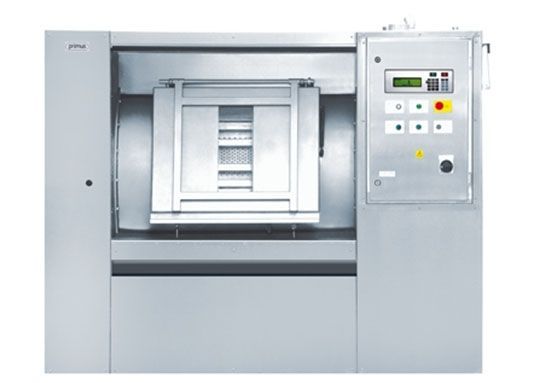

MB90、MB140、MB180
|
MB90 |
MB140 |
MB180 | |
|
Capacity |
90 kg |
140 kg |
180 kg |
|
Drum volume |
900 l |
1400 l |
1800 l |
|
Drum diameter |
Ø1000 mm |
Ø1200 mm |
Ø1300 mm |
|
Number of loading doors |
1 |
1 |
1 |
|
Number of unloading doors |
1 |
1 |
1 |
|
Number of pockets |
standard 3/optional 2 |
standard 3/optional 2 |
3 |
|
Frequency controlled motor |
standard |
standard |
standard |
|
Standard wash speed |
36 rpm |
32 rpm |
36 rpm |
|
Max. spin speed |
800 rpm |
720 rpm |
695 rpm |
|
G-factor |
360 |
350 |
350 |
|
Graphitronic® microprocessor programmer |
standard |
standard |
standard |
|
Stainless steel cabinet |
standard |
standard |
standard |
|
Stainless steel drum |
standard |
standard |
standard |
|
Electrical heating |
standard 54/optional 72 kW |
standard 72/optional 96 kW |
|
|
Steam high pressure heating |
6-8 bar |
6-8 bar |
6-8 bar |
|
Electrical connection |
3×380-480V 50/60Hz, 3×220-240V 50/60Hz |
3×380-480V 50/60Hz, 3×220-240V 50/60Hz |
3×380-480V 50/60Hz, 3×220-240V 50/60Hz |
|
Water inlet |
3×1,5 + 1×3/4 inch |
3×1,5 + 1×3/4 inch |
3×1,5 + 1×1 inch |
|
Compressed air inlet |
1/4 inch |
1/4 inch |
1/4 inch |
|
Drain |
Ø126 mm |
Ø126 mm |
Ø126 mm |
|
Dimensions (H×W×D) |
1805×2275×1615 mm |
2075×2435×1805 mm |
2165×2558×1905 mm |
|
Packed dimensions (H×W×D) |
1985×2355×1740 mm |
2250×2485×1940 mm |
2265×2665×2040 mm |
|
Volume (packed) |
8,1 m3 |
10,8 m3 |
12,3 m3 |
|
Net weight |
2810 kg |
3550 kg |
4990 kg |
|
Gross weight |
2970 kg |
3760 kg |
5310 kg |
|
Water consumption of cold/hot water per load (60°C programme with prewash) |
966/242 l |
1379/346 l |
2250/0 l |
|
Water consumption per 1 kg of load |
13,4 l |
12,3 l |
12,5 l |
|
Steam inlet |
1 inch |
1 inch |
1 inch |
