Product Info

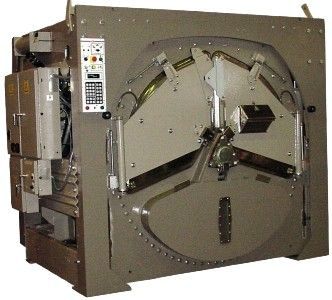

72044WP2 Washer
|
Model |
72044WP2 |
|
Cylinder Volume - cu. ft. (L) |
2936 |
|
Capacity @ 10:1 – lbs. (kg) |
294 |
|
Capacity @ 9:1 – lbs. (kg) |
326 |
|
Cylinder diameter x depth - ins. (mm) |
1829×1118 |
|
Number of cylinder compartments |
2 |
|
Cylinder door area - sq.in. (sq. cm) |
5484 |
|
Height of loading doors above floor - ins. (mm) |
927 |
|
Single-motor drive - HP (kw) |
|
|
Wash motor - HP (kw) |
7.45 |
|
Drain speed motor - HP (kw) |
5.59 |
|
Extraction motor - HP (kw) |
14.91 |
|
Low speed extraction motor - HP (kw) |
11.18 |
|
Approx. wash speed (reversing 4 times/minute) - RPM |
|
|
Approx. low speed extract - RPM |
|
|
Maximum Extract speed - RPM (G forces) |
292 |
|
Automatic drain valve - ins. (mm) |
254 |
|
Automatic inlet valves - ins. (mm) |
51** |
|
Overall width *** - ins. (mm) |
3041 |
|
Overall depth *** - ins. (mm) |
2146 |
|
Overall height *** - ins. (mm) |
2553 |
|
Approx. net weight - lbs. (kg) |
7829 |
