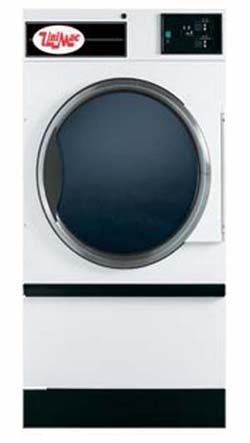

UT055 Dryer
|
MODEL |
UT055 | ||||
|
Dimensions | |||||
|
Capacity - kg (lb) |
24.9 (55) | ||||
|
Width - mm (in) |
876 (34.52") | ||||
|
Depth - mm (in) |
1362 (53.62") | ||||
|
Height - mm (in) |
1695 (66.72") | ||||
|
Cylinder Size - mm (in) (diameter x depth) |
838 x 889 (33" x 35") | ||||
|
Cylinder Volume - liters (cu. ft.) |
491 (17.3) | ||||
|
Motor | |||||
|
Motor Fan - HP(W) |
373 (1/2) | ||||
|
Motor Cylinder - HP(W) |
373 (1/2) | ||||
|
Energy Data | |||||
|
Gas Models |
32.8 kW (112,000 Btu/hr) | ||||
|
Steam Models |
N/A | ||||
|
N/A | |||||
|
Electric Models |
27 kW | ||||
|
Electrical Specifications | |||||
|
Gas and Steam |
Amps |
|
Electric |
Amps |
|
|
Voltages |
Non-Rev |
Rev |
Voltages |
Non-Rev |
Rev |
|
100/200-220/60/1 |
9.8 / 4.6 |
208/60/1 |
129 | ||
|
120/208-240/60/1 |
9.3 / 5.2 |
240/60/1 |
115 | ||
|
200-208/240/60/3 |
4.0 / 3.9 |
200/60/1 |
125 | ||
|
100/200/50/1 |
10 |
200-208/60/3 |
79 | ||
|
230-240/50/1 |
5.6 |
240/60/3 |
65 | ||
|
380/400-415/50/3 |
5.2 / 5.8 |
200/50/1 |
125 | ||
|
|
230-240/50/1 |
113 | |||
|
|
380/50/3 |
82 | |||
|
|
400-415/50/3 |
73 | |||
|
Connections | |||||
|
Water Inlet Size (C.A.R.E. System) |
N/A | ||||
|
Air Outlet - mm (in) |
203 (8") | ||||
|
Plumbing - Gas Model - mm (in) |
N/A (1/2" NPT) | ||||
|
Plumbing - Steam Model - mm (in) |
N/A | ||||
|
Airflow | |||||
|
Airflow - liters/sec (cfm) |
60 Hz: 330 (700) | ||||
|
50 Hz: 283 (600) | |||||
|
Shipping | |||||
|
Net Weight - kg (lb) |
197 (435) | ||||
|
Shipping Weight - kg (lb) |
216 (476) | ||||
|
Shipping Height - mm (in) |
1829 (72") | ||||
|
Shipping Width - mm (in) |
902 (35.5") | ||||
|
Shipping Depth - mm (in) |
1499 (59") | ||||
