Product Info

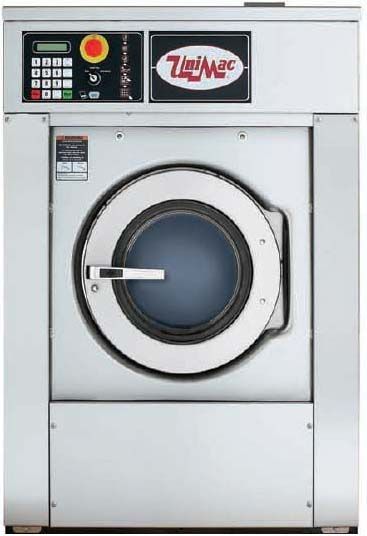

UX 200
|
MODEL |
UX200 |
|
Capacity - kg (lb) |
91 (200) |
|
Width - mm (in) |
1300 (51 13/16") |
|
Depth - mm (in) |
1808 (71 3/16") |
|
Height - mm (in) |
2100 (82 13/16") |
|
Cylinder Diameter - mm (in) |
1095 (43 1/8") |
|
Cylinder Depth - mm (in) |
957 (37 11/16") |
|
Cylinder Volume - liters (cu.ft.) |
900 (31.7) |
|
Door Opening Size - mm (in) |
622 (24 1/2") |
|
Door Bottom to Floor - mm (in) |
603 (23 3/4") |
|
Wash Speed - RPM |
10-50 |
|
Distribution Speed - RPM |
80 |
|
Extract Speed - RPM |
250-750 |
|
Extract G-Force |
34-350 |
|
Water Inlet Conn. - mm (in) |
3 x 25 (1") |
|
|
1 x 19 (3/4") |
|
Steam Inlet Conn. - mm (in) |
19 (3/4") |
|
Drain Conn. Size - mm (in) |
2 x 76 (3") |
|
Motor Size - kW (HP) |
11.5 (15) |
|
Voltage/Hz/Phase Circuit |
200-240/50-60/3 |
|
Breaker - FLA |
• 90 |
|
|
N/A |
|
|
380-415/50-60/3 |
|
|
• 50 |
|
|
N/A |
|
|
440-480/50-60/3 |
|
|
• 50 |
|
Shipping Dimensions - mm (in) (H) |
2250 (88 5/8") |
|
(W) |
1630 (64 3/16") |
|
(D) |
2100 (82 11/16") |
|
Net Weight - kg (lb) |
2900 (6393) |
|
Shipping Weight - kg (lb) |
3000 (6614) |
