Product Info

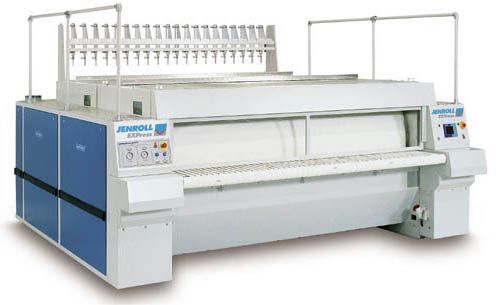

JENROLL EX8、EX10
|
JENROLL ironer |
JENROLL EX8-3-3000 |
JENROLL EX10-3-3000 | |
|
technical parameters |
roll |
3 |
3 |
|
roll diameter |
800mm |
1000mm | |
|
working width |
3000mm |
3000mm | |
|
Power supply |
380V/50Hz/3Ph 28.9Amp |
380V/50Hz/3Ph 41.7Amp | |
|
Power |
18Kw |
26Kw | |
|
specific air consumption |
240 L/Min per roller lift |
390 L/Min per roller lift | |
|
steam consumption |
322Kg/h |
410 Kg/h | |
|
steam connector diameter |
DN50 PN40 2" |
DN50 PN40 2" | |
|
compressed air connector |
1" |
1" | |
|
exhaust air connector |
200 mm |
200 mm | |
|
steam pressure |
10 Bar |
10 Bar | |
|
air pressure |
600 KPa |
600 KPa | |
|
contour dimension |
4271*4280*2604(Depth*Width*Height) |
4868*4280*2659(Depth*Width*Height) | |
|
gross weight |
12900kg |
14400kg | |
